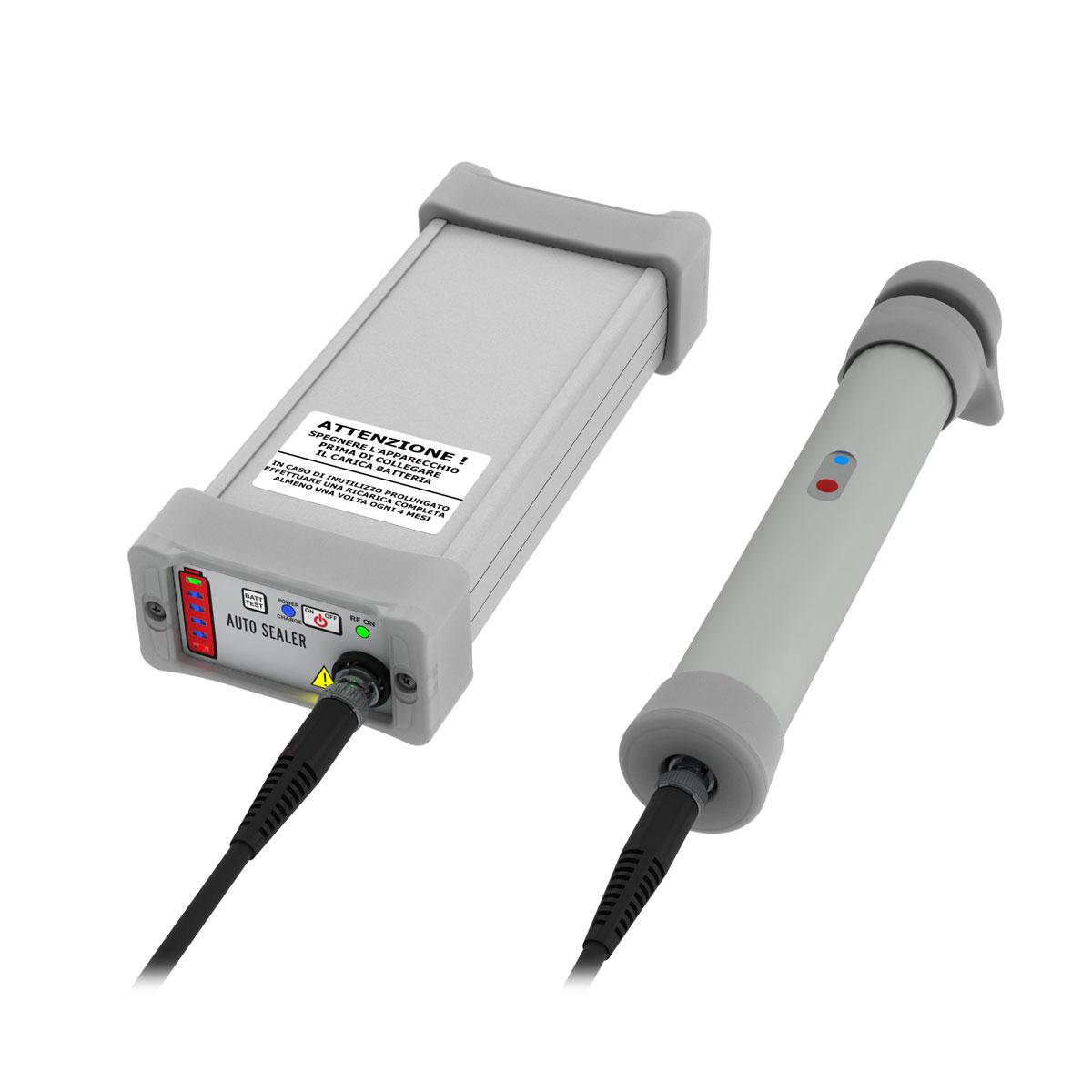

Portable Tube Sealer

Portable automatic sealer for both PVC & EVA tubes with motorized clamping system.

Description

Description

攜帶式封口機自動分辨並密封PVC及EVA材質的標準血袋管線,配備有電動封口夾以及高性能的射頻產生器,在充電完全時可進行超過2000次封口程序,封口過程是由微處理器自動調節執行封口作業時所需的能源。每一次封口作業結束後會以圖形化呈現電池即時狀態並具備聲音及畫面警示、充電完成自動關機功能。

  • Portable automatic sealer for pvc tubes with motorized clamping system.
  • Fully automated and controlled sealing process.
  • 充電完全可使用超過2000次封口作業
  • 配備最新一代節能離電池,充電時間小於2小時
  • No thermal battery runaway during charge.
  • The unit seals standard tubes in 3 seconds by pressing the switch on the handset unit.
  • High performance, reliable and efficient RF unit.
  • Sealing process controlled by microprocessor.
  • 低能源消耗:max. 90 Watt.
  • Light weight: 1.2 kg (base + handset).
  • 6 LED indication of the level of battery charge.
Download Product Brochure

Specifications

Specifications

Code

AS03

AC/DC Charger

input 100-240 VAC, 47-63 Hz, 1.62 – 0.72A Max
output 12Vdc, 5.25A Max

Battery

14.8V 3000 mA Li-ION

RF Output

Max. 90W @ 50 ohm

RF Frequency

40,685 MHz

Working Temperature

10ºC – 45ºC (50ºF – 113ºF)

Humidity

10 – 90 % RH without condensation

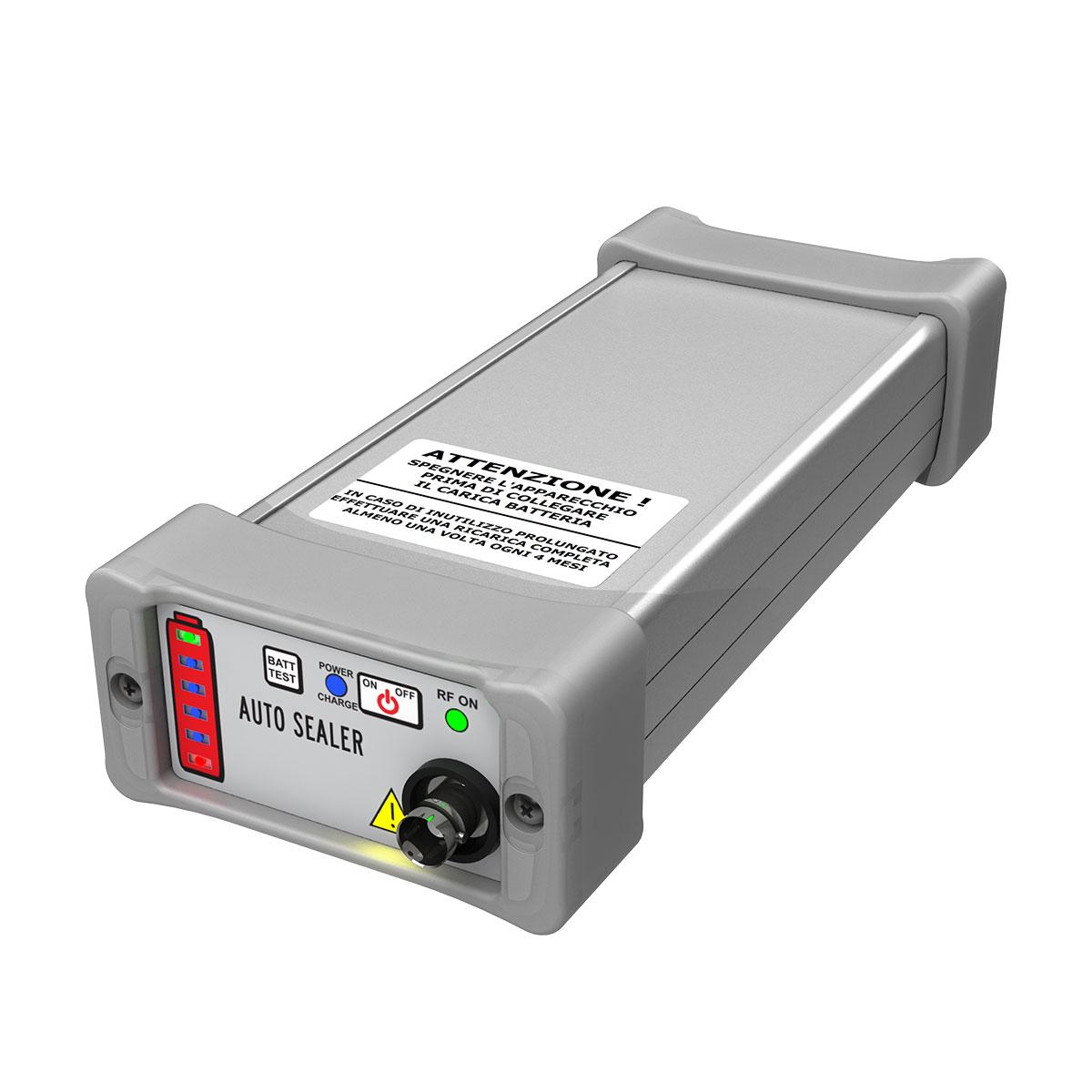

Base

尺寸:85 X 230 X 40(h) mm
淨重:0.78 kg

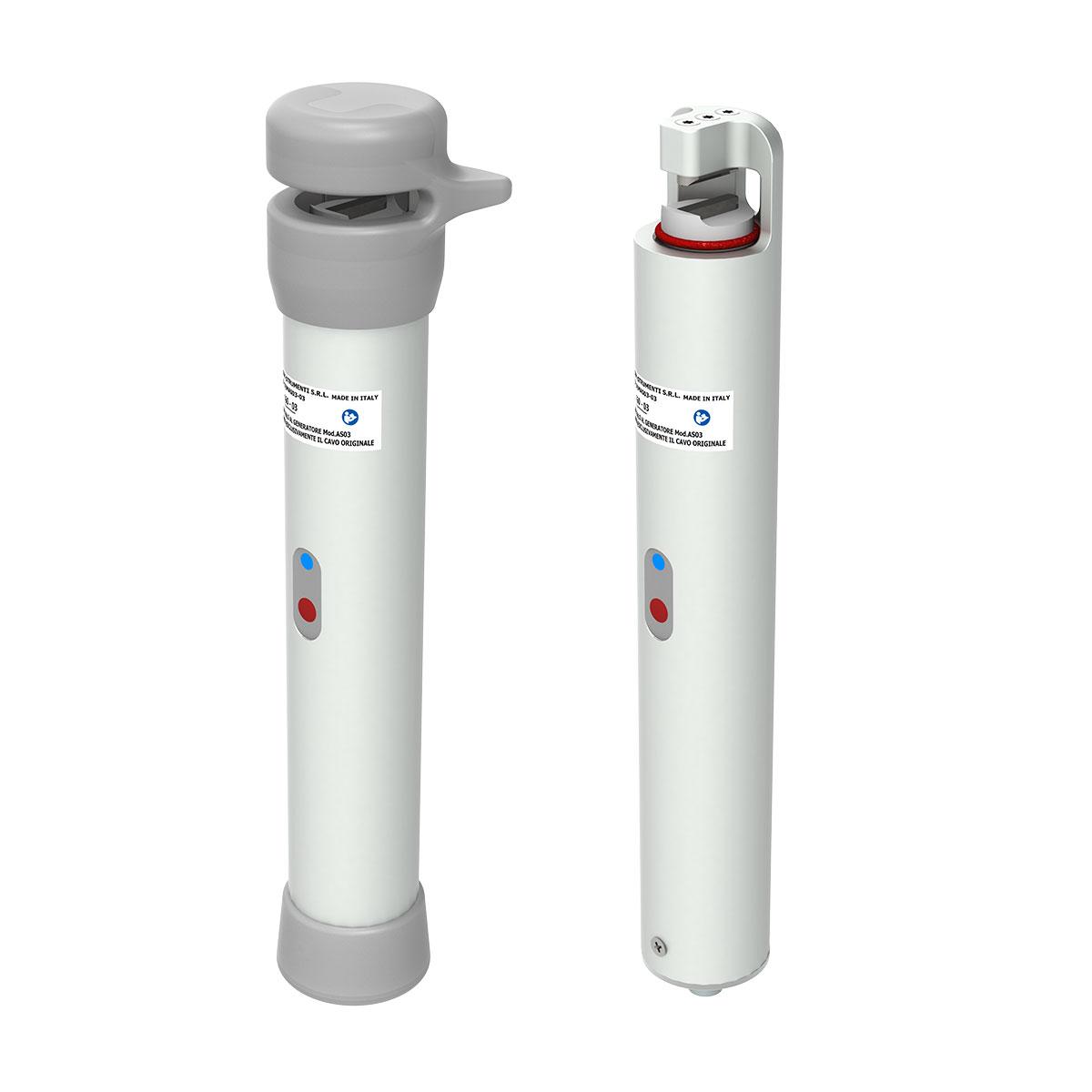

Handset Unit

尺寸:240 X 35 dia (mm)
淨重:0.33 kg
