Portable Tube Sealer (CF Type)

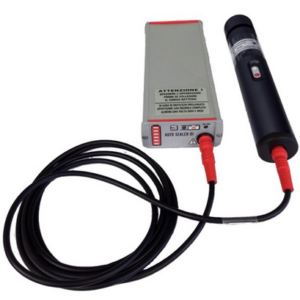

Portable automatic sealer for PVC tubes with motorized clamping system

  • The applied part of the CF type allows welding of tubes with a patient connected with a needle in vein

Description

Description

  • Portable automatic sealer for pvc tubes with motorized clamping system.
  • Fully automated and controlled sealing process.
  • Management of the acoustic and visual alarms(Buzzer + LED)
  • Recharging time of the battery: about 2 hours. While the battery is charging it is not possible toseal.
  • The applied part of the CF type allows welding of tubes with a patient connected with a needle in vein
  • The unit seals standard tubes, diameter from a minimum of 3 mm to a maximum of 6 mm withthickness of up to 0.8 mm, in 2-3 seconds, by pressing the switch on the handset unit.
Download Product Brochure

Specifications

Specifications

Code

AS01-CF

AC/DC Charger

input 100-240 VAC, 47-63 Hz, 0.3 – 0.9A Max
output 12Vdc, 5.25A Max

Battery

14.8V 3300 mA Li-ION

RF Output

40,655 MHZ

Working Temperature

10ºC – 45ºC (50ºF – 113ºF)

Humidity

10 – 90 % RH without condensation

Material

aluminium

Base

Dimensions: 85 x 190 x 40h mm
Net Weight: 0.82 Kg

Handset Unit

Dimensions: 220 x 35.5 dia mm
Net Weight: 0.37 Kg
